Modern high-end residential developments no longer treat vehicle roads, residential entrances and landscaped courtyards as completely separate outdoor spaces. Instead, greater emphasis is placed on creating continuity from the community entrance through to the internal public areas.

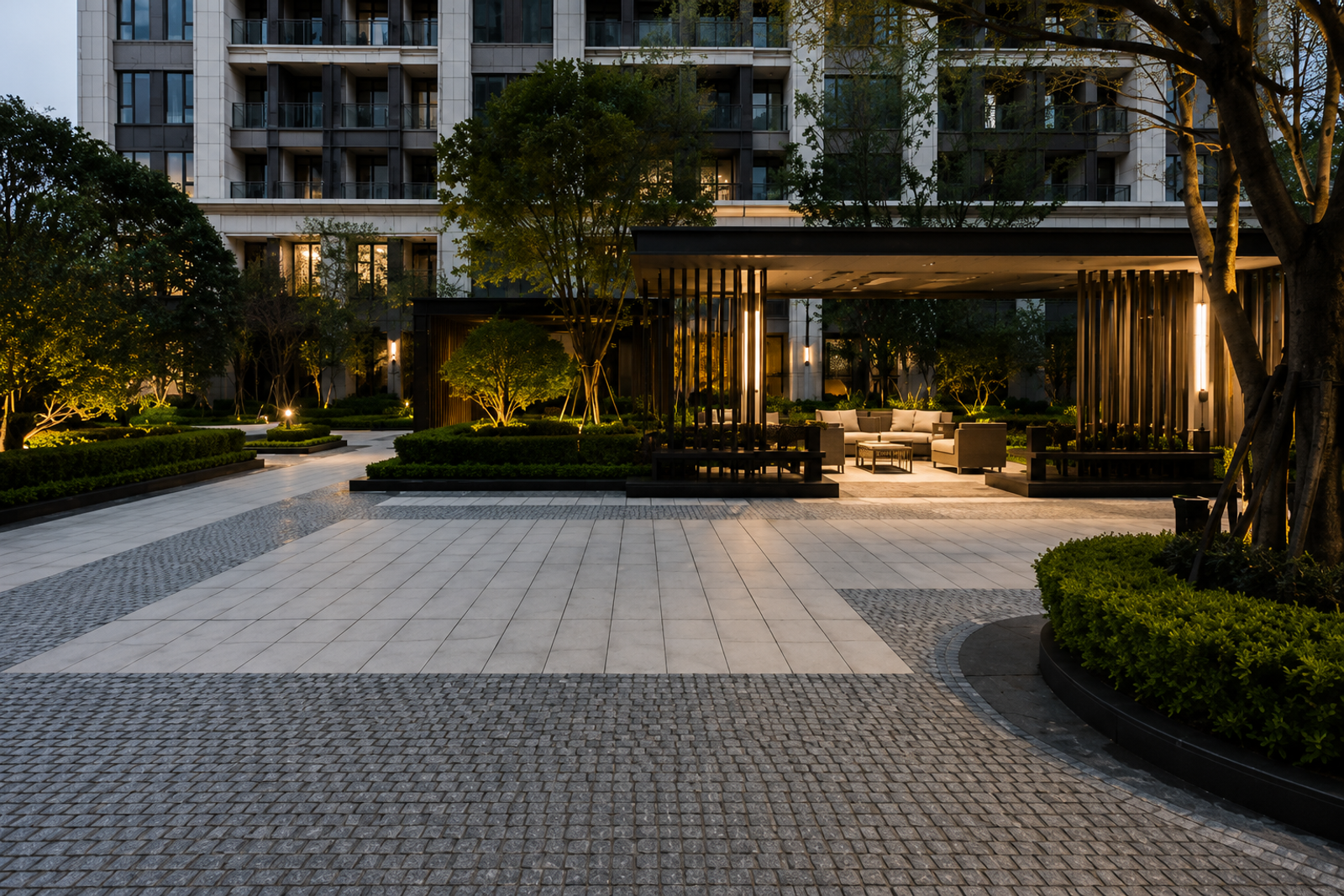

In this project, premium natural granite cobblestones were used throughout the residential shared streets, drop-off areas and central landscape courtyard. The objective was not simply to pave a road, but to use stone dimensions, laying directions and material combinations to gradually slow vehicles after entering the community, while allowing the roadway to transition naturally toward residential entrances and the central courtyard, creating a cohesive residential landscape system.
Project focus: reducing the visual character of a conventional road
The internal roads primarily serve residents’ vehicles, visitors and property management traffic. Unlike ordinary urban roads, however, these vehicle routes are located much closer to residential buildings and landscaped courtyards.
For this reason, natural granite cobblestones were used on the shared streets instead of conventional large-area road surfacing.
The small-scale stone units, natural joints and mineral texture of granite create a more refined paving rhythm. As vehicles enter the residential development, the change from the external urban road to an internal low-speed environment becomes immediately noticeable. At the same time, the roadway develops a more natural visual relationship with the surrounding planting, residential entrances and public landscape spaces.
Turning and drop-off areas follow vehicle movement
Several vehicle turning and short-stay drop-off areas are located close to the residential entrances. These are also important areas requiring more detailed treatment of the cobblestone paving.
The laying direction of the cobblestones was adjusted according to the actual turning radii so that the stone arrangement follows the curves of the road rather than creating numerous small cut pieces around corners.
At locations where vehicles frequently turn, brake and accelerate, particular attention was given to base stability and edge restraint to reduce the risk of loosening, displacement or localized settlement under long-term vehicle loads.
This approach preserves the refined landscape appearance of the cobblestones while meeting the practical requirements of low-speed vehicle areas within the residential development.
A change in paving scale marks the transition into the central courtyard
The central landscape courtyard is one of the most important communal spaces within the residential development and represents the clearest transition from a vehicle environment to a pedestrian landscape.
As the shared street approaches the courtyard, the same paving arrangement is not simply continued throughout. Instead, the scale of the stone and the paving layout gradually change.
Granite cobblestones continue to define courtyard entrances, landscape edges and transitions between different functional areas, while large-format granite slabs are introduced into the main pedestrian areas and residential building entrances.
The contrast between small-scale cobblestones and large-format slabs is clear without becoming visually excessive. Residents can naturally perceive the change in spatial character as they move from the shared street into the courtyard, while the continuous use of natural granite maintains overall material consistency.
Cobblestones adapt to complex landscape boundaries within the courtyard
The central courtyard contains planting areas, tree pits, seating, steps and pedestrian routes running in different directions, creating more complex paving boundaries than those found along ordinary roads.
The relatively small dimensions of cobblestones provide greater flexibility in these areas.
Around tree pits, curved planting edges and seating areas, the stone arrangement was adjusted according to the actual geometry so that the paving follows the landscape forms naturally while reducing excessively narrow or small cut pieces.
Along the main pedestrian routes, the surface variation of the cobblestones, joint widths and level relationships with the large-format granite slabs were carefully controlled to balance landscape texture with everyday walking comfort.
Coordinated stone tones connect architecture, roads and landscape
Grey and dark-grey natural granite form the principal paving palette throughout the project, coordinating with the modern residential façades, metal architectural elements and surrounding planting.
Rather than requiring every cobblestone to have an identical colour, the design retains a controlled degree of natural tonal and mineral variation within the granite.
Across the large shared streets and central courtyard, these subtle differences reduce the overly uniform appearance often associated with manufactured paving. Under sunlight, tree shadows and changing weather conditions, they also reveal more natural variations in the stone surface.
Drainage details were coordinated with the paving layout
There are several level transitions between the shared streets, residential entrances and central courtyard. Road crossfalls, courtyard gradients, stormwater inlets and linear drainage channels were therefore considered together during the paving detailing stage.
Particular attention was given to the transition areas between residential building entrances and the courtyard. Ground levels and drainage directions were established in advance so that rainwater follows planned drainage routes instead of flowing toward building entrances or major pedestrian areas.
The positions of drainage channels and stormwater inlets were also coordinated as closely as possible with the cobblestone and slab layouts, reducing unnecessary disruption to the main paving lines.
From the shared street to a complete central landscape courtyard
In this project, premium natural granite cobblestones connect the residential shared streets, vehicle turning and drop-off areas, building entrances and central landscape courtyard.
Small-scale stone paving helps establish a more natural low-speed environment along the shared streets. At turning and drop-off areas, the paving direction and structural requirements respond to vehicle movement. As the paving enters the central courtyard, the combination of cobblestones and large-format granite slabs creates a gradual transition in scale from vehicle space to pedestrian landscape.
Ultimately, the cobblestones function as more than a paving material for residential roads. They become an important landscape element connecting building entrances, vehicle circulation, pedestrian activity and the central courtyard, allowing the entire development to maintain a continuous, durable and coordinated natural-stone language from the roadway through to its communal spaces.
