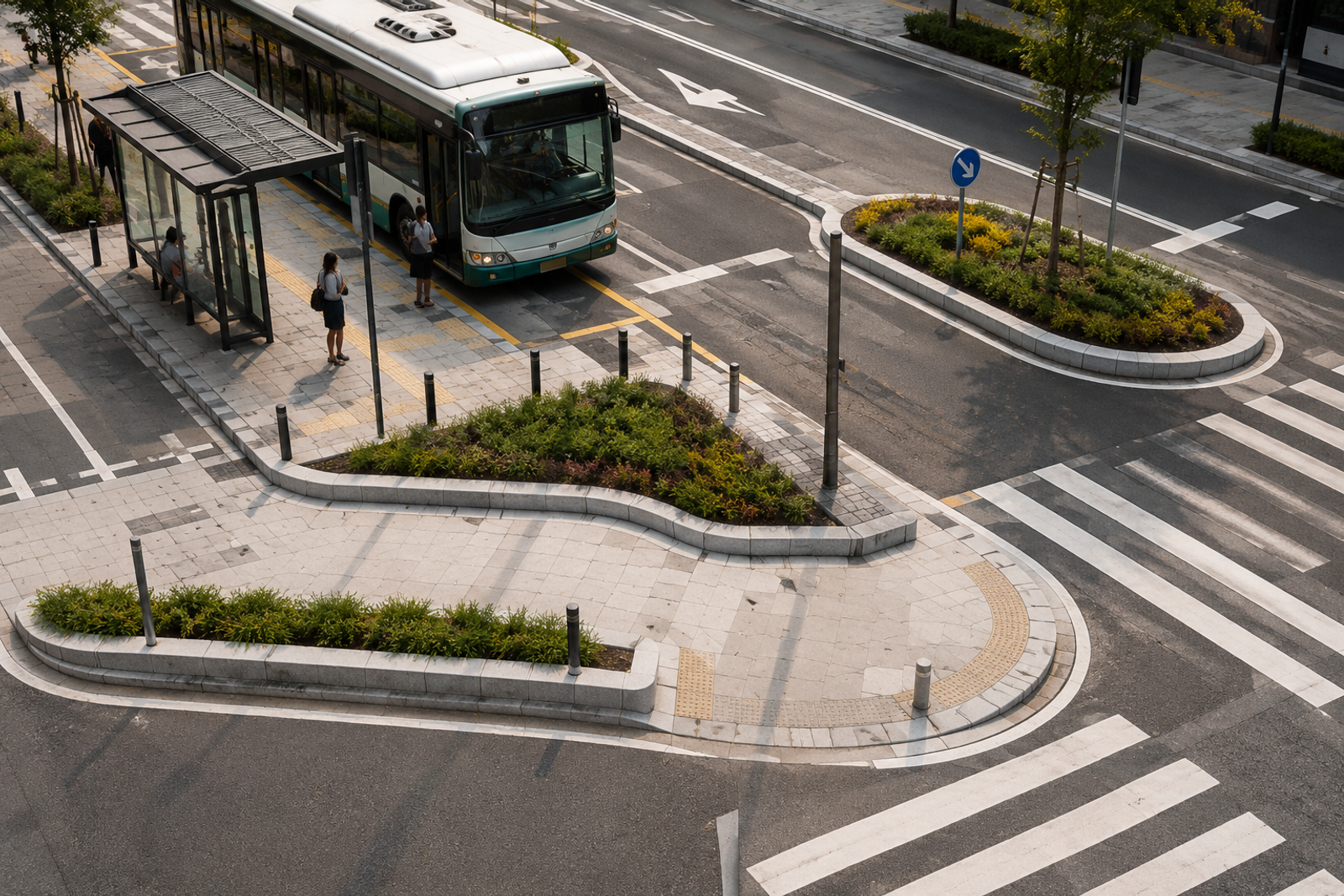

Urban bus stops, traffic islands and pedestrian crossings are important points where vehicles, pedestrians and public transport interact within the urban road system.
Although these areas may occupy only a small part of a road project, they often need to coordinate vehicle lanes, pavements, waiting areas, accessible routes and drainage. At bus stops and pedestrian crossings in particular, clear and continuous road boundaries can directly affect vehicle movement, pedestrian circulation and the overall organization of the streetscape.
Natural granite offers good strength, wear resistance and weather resistance, while granite kerbstones can be produced in straight, corner, curved and transition profiles to suit different road conditions. For urban transport environments where durability, spatial organization and long-term performance are important, granite provides a reliable material for creating stable road boundaries.
Why Do Urban Bus Stops Need Stable Road Boundaries?
Bus stops are urban road spaces where vehicles and pedestrians come into close proximity.
Buses repeatedly enter, stop at and leave the station area, while passengers move between the waiting zone and the vehicle. A clear and continuous boundary is therefore required between the roadway and the bus platform.
Kerbstones can define the edge of the bus platform, separating vehicle movement from passenger waiting areas while maintaining a consistent road line.
At frequently used bus stops, these boundaries must also withstand long-term exposure to vehicle activity, street cleaning, rainwater and seasonal weather conditions. The material therefore needs not only structural stability but also suitable wear and weather resistance for long-term outdoor use.
Why Should Bus Stops Consider Curves and Corners?
The road boundary around a bus stop is not always completely straight.
The entrance and exit of the stopping area, the ends of the platform and connections with adjacent pavements may include curves, corners or changes in road width.
If standard straight kerbstones are used for every section, numerous short pieces and joints may be required, creating a fragmented road edge.
Where the geometry of the bus stop is clearly defined, different lengths, corner units or curved granite kerbstones can be produced according to the road design. This allows the platform edge to follow the vehicle route more naturally.
Customization in this situation is not intended to make the road structure more complicated. Its purpose is to make the dimensions and geometry of the stone correspond more accurately with the actual road layout.
Why Do Traffic Islands Need Clearly Defined Edges?
Traffic islands are often positioned between vehicle lanes to provide pedestrians with a temporary waiting area or a safe point for crossing a road in stages.
Because moving vehicles may surround these spaces, the perimeter needs to create a clearly recognizable boundary between pedestrian and vehicle areas.
For narrow, curved or multi-corner traffic islands, the length, angle and arrangement of kerbstones can directly influence the final geometry.
Planning straight sections, corners and curves according to the shape of the island during the design stage can reduce excessive small-piece cutting on site and create a cleaner, more continuous boundary.
Why Are Kerb Height Transitions Important at Pedestrian Crossings?
Along ordinary urban roads, kerbstones usually create a height difference between vehicle lanes and pedestrian pavements.
At pedestrian crossings and accessible crossing points, however, this height needs to decrease gradually so that pedestrians can move smoothly from the pavement into the crossing area.
A pedestrian crossing should therefore not simply be created by suddenly lowering a standard kerbstone.
A more coordinated solution is to use kerbstones with different heights or transition profiles according to the levels of the roadway and pavement. This allows the normal road edge to gradually connect with the lowered crossing point.
Such a transition helps maintain the continuity of the road boundary while reducing abrupt changes in level.
Accessibility Should Be Designed Together with the Kerbstone System
Wheelchairs, pushchairs, wheeled luggage and people with limited mobility are particularly sensitive to changes in level and surface continuity.
Accessible crossing areas therefore need to coordinate ramps, tactile paving, pedestrian crossings and surrounding road boundaries as one system.
Using transition kerbstones with appropriate heights and profiles allows a standard road edge to gradually descend toward an accessible crossing.
This can reduce irregular on-site cutting while maintaining better continuity between the kerbstones and surrounding paving.
For urban road projects, accessible crossings should not be treated as modifications added after the main road edge has been completed. They should be coordinated with the kerbstone system from the road design stage.
Why Must Drainage Also Be Considered?
Bus stops, traffic islands and pedestrian crossings are generally located along road edges, which are also important routes for collecting and directing rainwater.
When bus platforms, traffic islands or accessible ramps change the normal road boundary, they may also alter the original drainage path.
Kerbstones therefore need to work not only as physical boundaries but also in coordination with road gradients, drainage inlets and the direction of surface water flow.
This is particularly important at lowered pedestrian crossings. If drainage is not properly coordinated, rainwater may accumulate directly within the main pedestrian route.
Considering drainage together with kerbstone heights, transition points and boundary geometry can help reduce conflicts between accessibility and road drainage.
Why Are Granite Kerbstones Suitable for Urban Transport Areas?
Bus stops, traffic islands and pedestrian crossings share several characteristics: they experience frequent use, involve complex road relationships and need to remain stable over long periods.
Kerbstones in these locations do more than finish the edge of a road. They help separate vehicle and pedestrian areas, create accessible transitions and define the overall geometry of the streetscape.
Natural granite offers good strength, wear resistance and outdoor durability. It can also be processed into different lengths, cross-sections, corners, curves and transition profiles according to the road design.
By maintaining a coordinated stone type and overall colour while adjusting kerbstone specifications for different transport nodes, bus stops, traffic islands and pedestrian crossings can form a more continuous and integrated road-edge system.
Conclusion
Urban bus stops, traffic islands and pedestrian crossings are important points connecting vehicles, public transport and pedestrian movement.
These areas require clear and stable road boundaries while also addressing bus movements, pedestrian circulation, accessible transitions and road drainage.
With its durable material properties and flexible processing options, natural granite kerbstone can accommodate straight sections, curves, corners and changes in height across different road conditions.
For urban transport environments, the role of kerbstones extends beyond simply finishing a road edge. More importantly, they help create a continuous, clearly defined and durable boundary between vehicle routes and pedestrian spaces.
