University campus roads function differently from conventional urban streets. The main entrance needs to accommodate vehicle access and traffic distribution while also handling the high volume of students, faculty and visitors moving on foot. Further inside the campus, these roads connect academic buildings, libraries, student residences, public plazas and landscaped areas, gradually forming a slow-mobility network primarily designed for pedestrians and cyclists.
In this project, high-quality natural granite kerbstones were used to create consistent edges along the university’s main entrance, internal slow-mobility routes, landscaped boundaries and accessible pedestrian crossings. The objective was not simply to install kerbstones along both sides of the road, but to adapt kerbstone dimensions, corners, dropped sections and custom details to different traffic conditions, road geometries and level changes, creating clear and continuous boundaries between vehicle routes, pedestrian paving and the campus landscape.

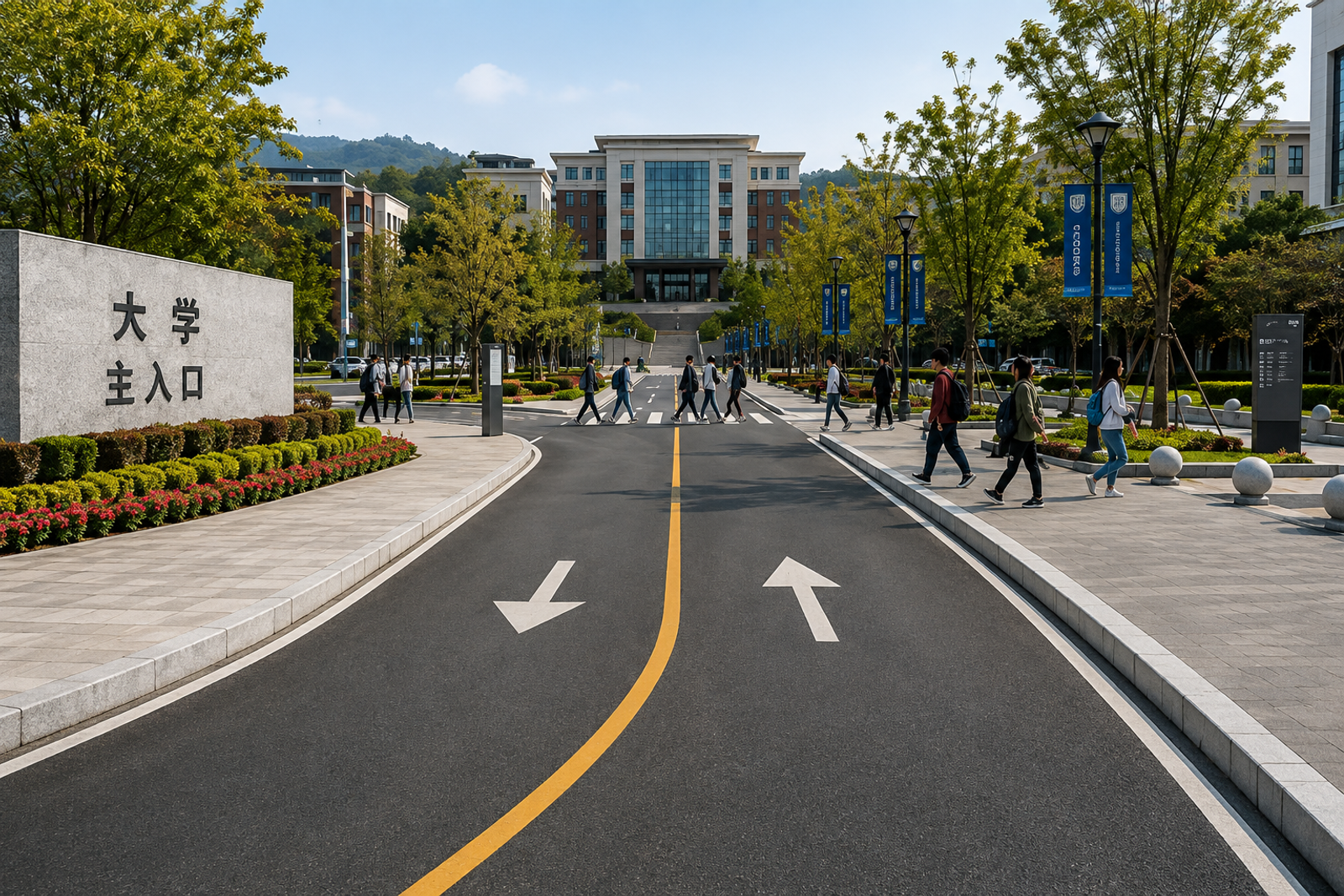

The main entrance needs to accommodate vehicle turning and concentrated pedestrian movement
The university’s main entrance is one of the most complex traffic areas within the project.
After leaving the urban road and entering the campus, vehicles need to slow down, turn and distribute onto different internal routes. At the same time, large numbers of students and faculty enter from both sides of the gateway and frequently cross vehicle routes nearby.
Continuous natural granite kerbstones were therefore installed along both sides of the main entrance to establish clear vehicle boundaries, while the consistent overall stone colour coordinates with the entrance plaza paving, building façades and surrounding landscaping.
At vehicle turning areas, the lengths and connections of the kerbstones were adjusted according to the actual road radius. This allows the kerb line to follow curved roads naturally instead of creating visible angular transitions through numerous short straight sections.
Slow-mobility roads require continuous and stable landscape edges
Further inside the campus, the road environment gradually transitions into a slow-mobility network primarily used by pedestrians and cyclists.
These routes pass through academic buildings, public green spaces and open campus areas. The kerbstones therefore need not only to stabilize road edges but also to maintain visual continuity throughout the campus circulation system.
Granite kerbstones were installed along the main slow-mobility routes to define the relationship between paved surfaces, landscaped areas and occasional vehicle zones.
Along straight sections, consistent dimensions and continuous joints create a clean and orderly road edge. Around curved routes, landscaped corners and building entrances, kerbstone lengths and corner connections were adapted to the actual geometry, allowing the kerb line to follow changes in the road naturally rather than relying on extensive on-site cutting.
Accessible crossings require carefully designed kerb level transitions
Continuous pedestrian movement is a fundamental part of everyday campus life, making accessible crossings an important element of this project.
Along conventional road sections, kerbstones maintain a clear boundary between vehicle and pedestrian areas. At pedestrian crossings, however, maintaining the same kerb height would create an unnecessary level difference.
Dropped kerbstones and transitional sections were therefore introduced at the main crossing points.
As the kerb approaches an accessible crossing, its level gradually decreases so that the pedestrian paving can connect smoothly with the roadway. This creates a more continuous route for wheelchair users, people with limited mobility, wheeled luggage and other wheeled equipment.
This detail involves more than simply changing the height of the stone. Transition length, road gradient, pedestrian paving level and joint positions all need to be coordinated. Without advance planning, these areas can easily require excessive on-site cutting and result in short stone pieces or poorly aligned level transitions.
Drainage needs to be coordinated with accessible crossings
When the kerb level is lowered, the drainage conditions along the road edge also change.
If road crossfalls and rainwater flow are not coordinated in advance, an accessible crossing can become a route for surface water to enter pedestrian areas or create local ponding around the ramp.
For this reason, road crossfalls, crossing levels and nearby drainage facilities were reviewed together during the detailing of the accessible crossing points. Rainwater can therefore continue to follow the road gradient toward drainage inlets rather than concentrating along the main pedestrian routes.
By considering kerb level changes and drainage as part of the same system, the project maintains continuous accessible movement without creating new areas where water can accumulate.
Complex locations were detailed before stone processing
Campus roads include straight sections, curved corners, intersections, building entrances and multiple accessible crossings. Using the same standard kerbstone everywhere and relying on on-site cutting for complex locations can easily result in fragmented stone pieces and irregular joints.
Based on the detailed road layout drawings, the project distinguished standard straight kerbstones, corner sections, curved areas and accessible transition sections before production. Dimensions and processing requirements were then determined according to the actual installation locations.
At the campus entrance and major pedestrian crossings in particular, defining stone lengths, corner relationships and level changes in advance reduced secondary cutting on site and helped maintain more continuous road edges after installation.
Natural granite is suitable for high-frequency, long-term campus use
A university campus is a long-term public environment where roads experience continuous pedestrian, bicycle and vehicle movement while also being exposed to rainfall, cleaning, temperature changes and long-term outdoor weathering.
Natural granite offers stable material performance, good wear resistance and durability suitable for long-term exterior applications, making it well suited to campus road-edge construction.
Granite kerbstones with a controlled overall colour range also coordinate naturally with campus architecture, plaza paving and landscaped areas, allowing essential road infrastructure to become part of the wider landscape rather than appearing as an isolated engineering element.
From the campus entrance to a complete slow-mobility network
In this project, natural granite kerbstones connect the university’s main entrance, internal slow-mobility routes, landscaped boundaries and accessible crossings into a continuous road system.
The main entrance focuses on vehicle turning and concentrated pedestrian movement. Internal routes require stable and continuous landscape edges, while accessible crossings rely on dropped kerbs, carefully controlled level transitions and coordinated drainage to maintain comfortable movement.
By detailing different conditions and planning stone dimensions before production, the granite kerbstones ultimately provide more than a clear and durable road boundary. They become an important component connecting vehicle circulation, pedestrian movement, accessibility and the overall campus landscape.
