This project involved the paving of an urban rail station forecourt and its main pedestrian transfer areas. The plaza connects the station entrance with bus stops, taxi zones and the surrounding urban pedestrian network, creating an important public space for passenger circulation and transport interchange.
Natural granite slabs were selected as the primary outdoor paving material. Because the area experiences concentrated pedestrian traffic as well as frequent movement of wheeled luggage, strollers and other rolling equipment, the project required careful control of paving layout, joints, surface evenness, accessibility and drainage details.
Paving Layout Based on Pedestrian Flow
The station forecourt covers a relatively large area, so the paving layout was first coordinated with the main station entrance axis and primary pedestrian movement routes.
Larger and more continuous paving modules were used around the main entrance to establish a clear relationship between the ground plane and the architecture. Moving into the transfer areas, the direction of the slab layout continues toward bus stops, taxi zones and surrounding pedestrian routes.
Rather than relying on multiple stone colours to divide the space, the project uses slab dimensions, laying direction and joint alignment to create an organised paving system.
Different Slab Specifications for Different Areas
Although a consistent granite colour and surface character were maintained throughout the project, the same slab dimensions were not used everywhere.
Regular large-format slabs were selected for the main station forecourt to reinforce its overall scale. Dimensions along major transfer routes were adjusted according to walkway widths, while entrance edges, drainage facilities and equipment foundations required customised stone sizes.
The custom granite slabs were specified with appropriate dimensions, thicknesses and surface finishes before production, allowing factory processing to correspond accurately with each paving zone while reducing narrow strips, small pieces and irregular on-site cutting.
Controlling Evenness Along Luggage Routes
Urban rail stations receive large numbers of passengers carrying wheeled luggage, making paving evenness particularly important along major pedestrian routes.
During production and installation, attention was given to slab thickness, joint consistency and height differences between adjacent stones. Excessive use of small or fragmented pieces along primary walking routes was also avoided.
Regular and continuous joints improve the visual quality of the paving while helping reduce noticeable vibration when luggage wheels move across the surface.
Accessibility and Drainage Detailed in Advance
Accessible routes, ramps, tactile paving and their relationship with station entrances were incorporated into the paving layout before stone production began.
Slab dimensions around tactile guidance areas were adjusted according to the surrounding paving module, reducing unnecessary cutting during installation.
Drainage channels and rainwater outlets were also coordinated with the granite layout. Surrounding slab dimensions were adjusted according to drainage positions, while surface gradients were planned to direct water efficiently and integrate these technical elements into the overall paving system.
Processing and Numbering by Paving Zone
Because the project included multiple paving areas and different slab specifications, factory production was not organised simply by stone size.
After the detailed paving layout was completed, slabs were numbered according to their intended installation zones, with corresponding information retained during processing, inspection and packing.
Special-sized pieces around entrances, drainage facilities and other complex details were individually processed and identified according to the shop drawings. This allowed the stone to be installed according to area and sequence after arriving on site, reducing additional cutting and material sorting.

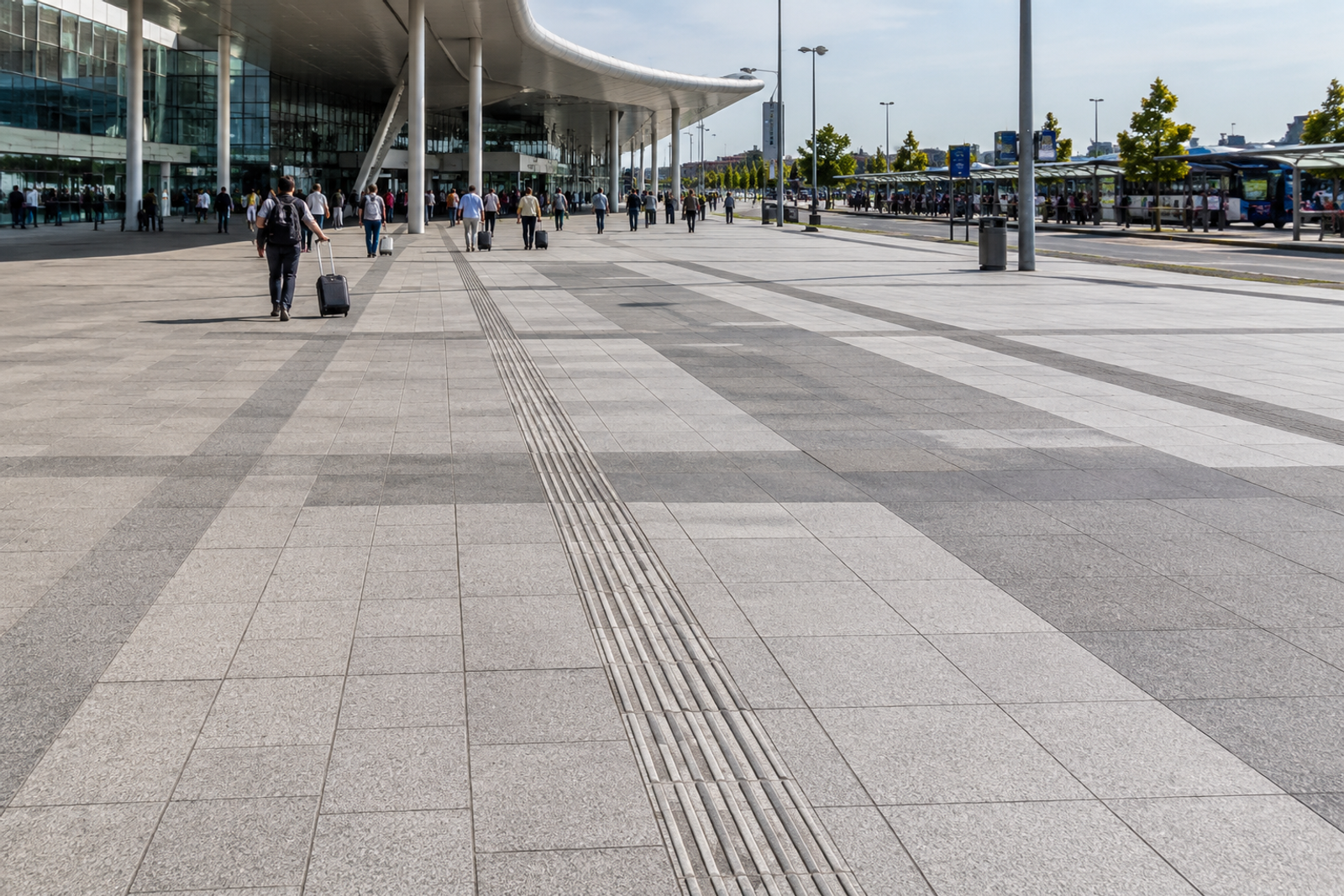

Completed Project
After installation, the natural granite paving extends continuously from the station entrance across the forecourt and into the main pedestrian transfer areas.
Large-format slabs reinforce the scale of the station plaza, while the principal joint directions correspond with passenger movement. Accessible routes, drainage facilities and special paving details are integrated into the overall layout.
Although slab dimensions and laying patterns vary between functional zones, a consistent granite colour and surface texture maintain visual continuity throughout the project.
Conclusion
Granite paving for an urban rail station forecourt involves much more than covering a large area with natural stone.
In this project, pedestrian circulation, slab dimensions, accessibility, drainage details and production numbering were coordinated during the design development stage, allowing custom fabrication to translate the paving design into practical production dimensions.
For large public transport spaces, the value of custom granite slabs lies not only in their durability, but also in their ability to connect design, factory production and on-site installation within a coordinated and executable paving system.
