Commercial complexes usually need to accommodate vehicle access, pedestrian circulation, building entrances, and landscape boundaries within the same outdoor space. At underground parking entrances, pedestrian crossings, and main walkways in particular, kerb heights and boundary conditions often need to change according to different circulation requirements.

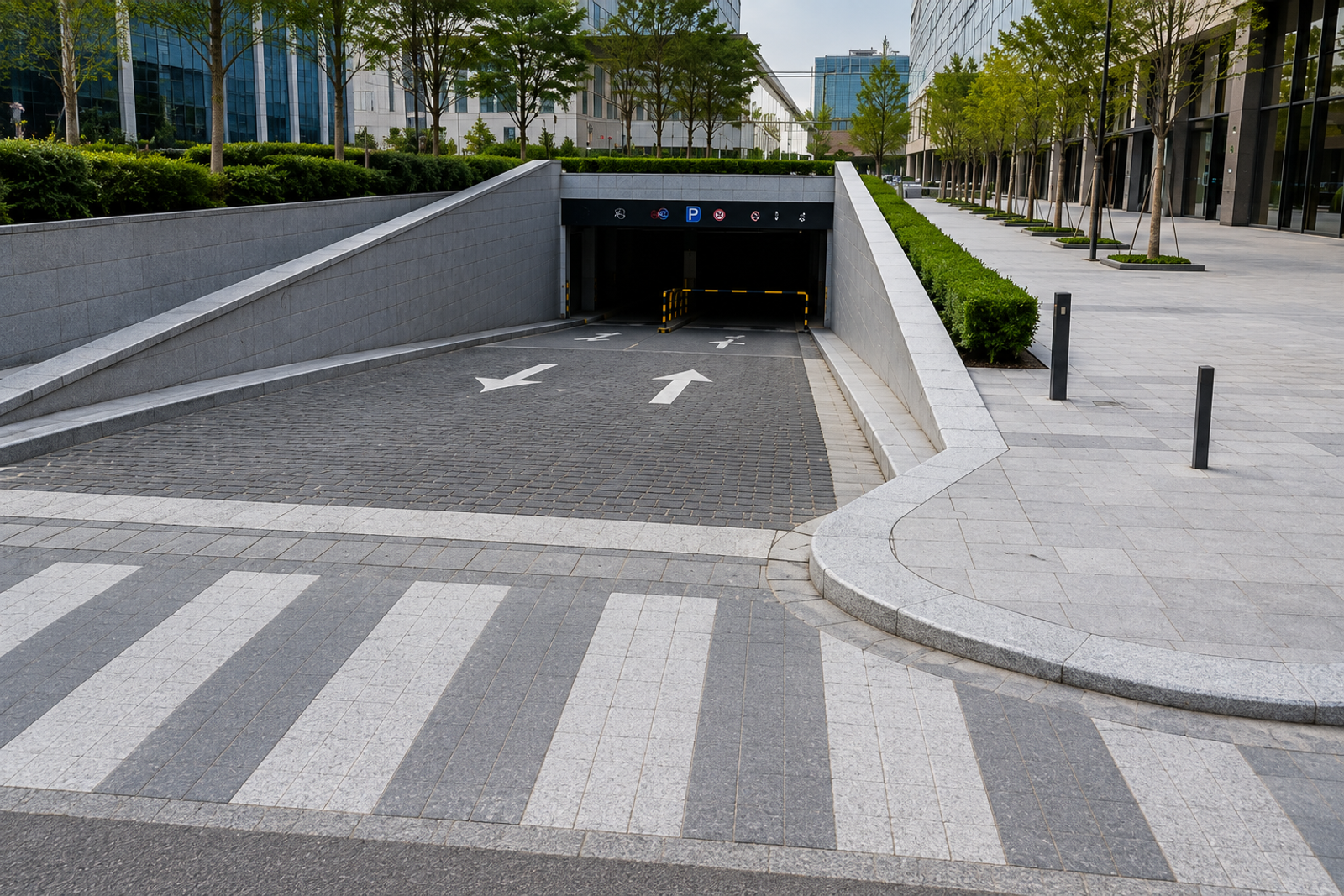

In this project, premium natural granite kerbstones were used along the vehicle entrances and pedestrian crossing areas of a commercial complex. Instead of repeating a single standard kerb profile throughout the site, standard kerbs, transition kerbs, and lowered sections were coordinated according to different levels and circulation conditions, creating a continuous and clearly defined boundary between vehicular roads, pedestrian paving, and the surrounding landscape.
Transitioning from Standard Kerbs to Vehicle Entrances
Along regular vehicular roads, granite kerbstones maintain a relatively consistent height to clearly separate vehicle routes from pedestrian areas.
At underground parking entrances, however, vehicles need to cross the normal road boundary, so the kerb cannot simply stop abruptly.
Based on the entrance width and vehicle movement requirements, transition kerbs were introduced on both sides of the entrance. The kerb height gradually decreases from the standard road edge toward the vehicle crossing area, creating a smoother transition.
Beyond the entrance, the kerb gradually returns to its standard height.
This approach avoids abrupt breaks in the kerb line and reduces the need for extensive on-site cutting or improvised adjustments during installation.
Smoother Transitions at Pedestrian Crossings
Pedestrian crossings within commercial developments often connect parking areas, building entrances, and main pedestrian routes.
At these locations, kerbstones need to do more than define the road edge. They must also support comfortable movement for pedestrians, wheelchair users, pushchairs, and other users.
In this project, transition kerbs and lowered granite kerbs were used to create a gradual change in height at pedestrian crossing points.
The exact levels, gradients, and accessibility requirements were determined according to the project design and applicable local regulations. Once the required levels were confirmed, the stone components were fabricated according to the detailed drawings so that adjacent kerb units could form a continuous transition.
Coordinating Kerbstones with Pedestrian Paving
Vehicle entrances and pedestrian crossings are also locations where different paving materials frequently meet.
One side of the kerb may connect to a vehicular surface, while the other may meet large-format granite slabs, granite cobblestones, or other pedestrian paving materials.
If the kerb layout and paving grid are developed separately, these areas can easily result in narrow cut pieces, irregular joints, and excessive on-site cutting.
For this project, kerb positions, transition lengths, and adjacent paving joints were coordinated during the detailing stage. This allowed the main joint lines to remain clean and visually continuous.
The granite kerbstones therefore function not only as road edging, but also as an important transition between vehicular and pedestrian spaces.
Custom Fabrication of Special Kerb Units
Standard straight kerbstones can usually be produced in consistent dimensions. Transition areas around vehicle entrances and pedestrian crossings require more detailed coordination.
Before production, the project distinguished between standard kerbs, transition units, and lowered kerbs according to their installation positions and required levels.
Special corner pieces and directional components were also fabricated according to the project drawings where necessary.
Resolving these details before production reduced the need for modifications on site and helped maintain consistent stone surfaces, edges, dimensions, and joint relationships throughout the project.
Maintaining Colour Consistency Along Continuous Kerb Lines
Commercial developments can require long and visually continuous runs of granite kerbstones. Overall colour coordination therefore becomes important at the project scale.
Natural variations in granite colour and mineral composition were retained, while the overall tonal range was controlled across standard kerbs, transition units, and special pieces.
This allowed changes in kerb height and geometry to remain visually integrated within one continuous stone boundary rather than appearing as separate sections.
Project Result
After completion, the natural granite kerbstones formed a clear and durable boundary around the commercial complex.
Along standard vehicular areas, the kerbs maintain a consistent road edge. At underground parking entrances and pedestrian crossings, the kerb height gradually decreases to create smoother connections with vehicle and pedestrian routes before returning to the standard level beyond each transition.
These changes are subtle within the overall landscape, but they create a more coherent relationship between roads, pedestrian crossings, building entrances, and surrounding paving.
For commercial complexes, hotels, office developments, and large public buildings, premium granite kerbstones provide more than durable road edging. Through careful detailing and custom fabrication, they can resolve changes in level, circulation requirements, and transitions between different paving materials, becoming a precise and long-lasting component of the overall external landscape system.
