Entrance plazas for cultural centers, art centers, and public exhibition buildings often need to coordinate large-scale paving with architectural axes, pedestrian circulation, surface gradients, and rainwater drainage. For projects using large-format natural granite slabs, the final result depends not only on the stone itself, but also on how functional elements such as linear drains and inspection covers are integrated into the overall paving layout.
In this project, custom natural granite slabs were used for the main entrance plaza of a cultural center. The linear drainage system and stone layout were developed together during the detailing stage, creating a coordinated relationship between the building entrance, plaza paving, and drainage elements.
Large-Format Granite Slabs Extend the Architectural Order
The cultural center features a clean, contemporary architectural language, while the entrance forecourt requires an open and visually coherent paving surface.
Large-format granite slabs were selected as the primary paving material. Their consistent proportions and continuous joint lines extend the geometric order of the building façade into the outdoor plaza.
During the detailing stage, the paving layout was not simply developed from one edge of the plaza. The main entrance, architectural axis, and primary pedestrian direction were established first, and the slab module was then adjusted around these relationships.
This approach helped avoid irregular cuts and excessive small pieces around the main entrance, allowing the paving pattern to extend naturally from the building into the plaza.
Integrating Linear Drainage into the Paving System
Large entrance plazas require carefully designed gradients to direct rainwater toward drainage areas.
If linear drains and stone layouts are designed independently, drainage channels may cut awkwardly through full slabs, create narrow stone strips along their edges, or conflict with the main paving joints.
For this project, the linear drainage channels were incorporated into the paving grid during the detailing stage.
The dimensions of adjacent slabs were adjusted according to the drainage positions, allowing key paving joints to align more naturally with the direction of the drainage channels. Rather than appearing as separate technical elements added later, the linear drains became part of the overall paving layout.
This solution maintains both effective drainage and the visual continuity of the large-format natural stone surface.
Coordinating Inspection Covers with the Slab Layout
In addition to linear drainage, public building entrance plazas may contain inspection covers, equipment bases, and other fixed service elements.
Although these elements occupy relatively small areas, they can easily disrupt a large-format paving layout.
Before stone fabrication, the slab dimensions and surrounding joints were adjusted according to the exact positions of these fixed elements. This helped avoid narrow stone strips, small triangular pieces, and structurally weak irregular slabs around inspection covers.
Where special shapes were required, the granite slabs were cut according to detailed fabrication drawings and numbered according to their installation areas.
This reduced the need for extensive cutting on site and allowed functional elements such as inspection covers to integrate more naturally into the overall paving system.
Custom Fabrication Reduces On-Site Adjustments
The cultural center entrance plaza covers a large area. While the overall paving follows a consistent design language, slabs near building edges, drainage channels, and service elements often require different dimensions.
For this reason, the project used custom fabrication based on the final paving layout rather than relying entirely on standard slab sizes followed by extensive cutting on site.
Slab dimensions, thickness, surface finish, edge details, and special cut-to-size pieces were confirmed before production. The finished components were then numbered and packed according to their installation zones.
This process allowed the paving design to be translated more accurately into factory fabrication dimensions while reducing the complexity of handling detailed junctions during installation.
Maintaining Visual Consistency Across the Plaza
Large public plazas require careful coordination of the overall colour and appearance of natural stone.
For this project, the natural texture and reasonable colour variation of the granite were retained while different production batches were coordinated to maintain a balanced overall appearance across the main entrance, central plaza, and areas surrounding drainage elements.
The large-format granite slabs create a clean and stable paving base, while carefully detailed drainage lines and service elements remain integrated into the overall ground pattern without disrupting the visual continuity of the entrance plaza.
Project Result

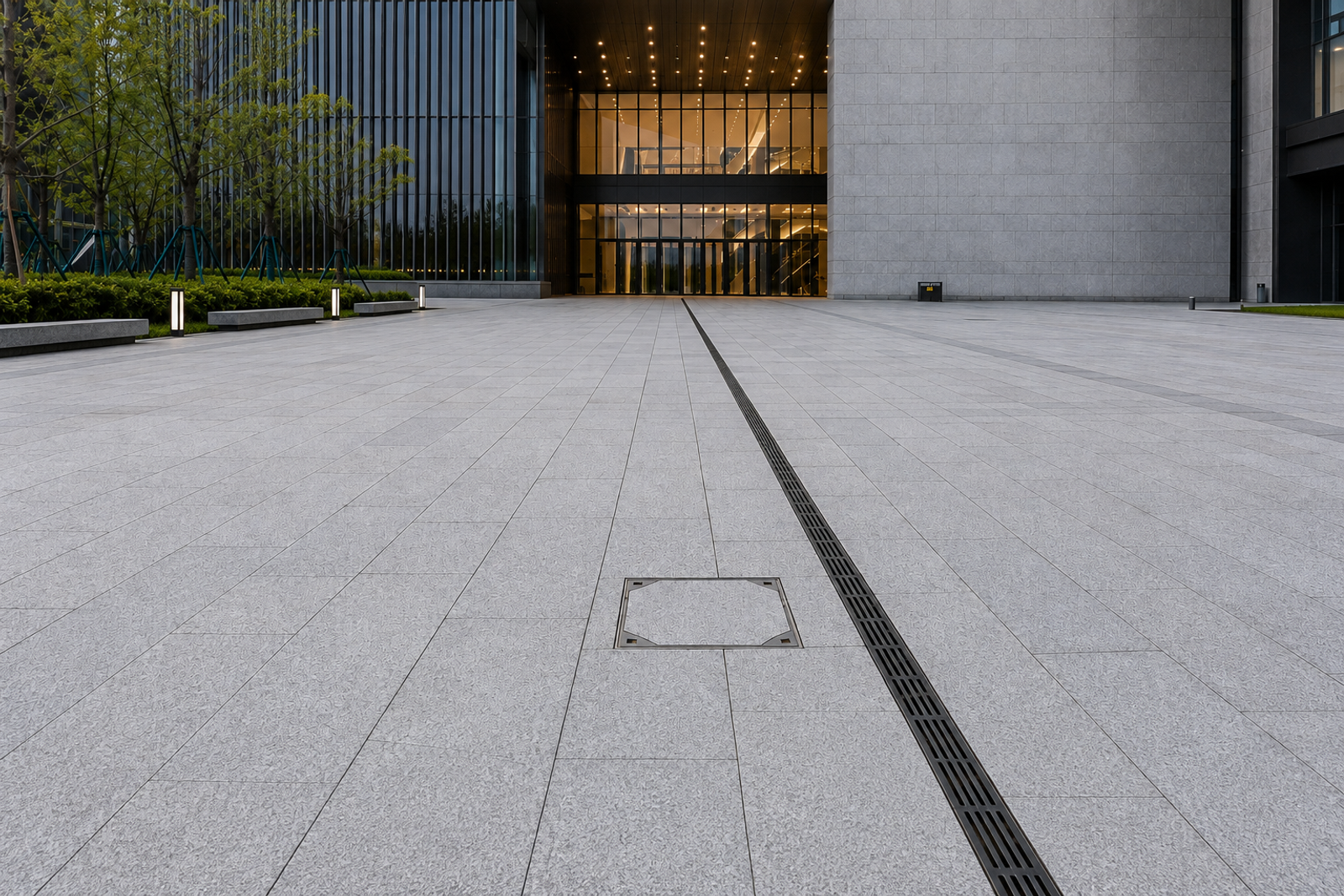

After completion, the custom granite slabs extend continuously from the main entrance of the cultural center across the forecourt plaza, creating an open and refined public pedestrian space.
The main paving joints remain coordinated with the architectural direction, while the linear drainage channels are naturally incorporated into the paving grid. Inspection covers and other functional elements were also resolved through early detailing, reducing fragmented cuts and irregular edge conditions.
Viewed across the completed plaza, the drainage infrastructure does not appear as a visual interruption. Instead, it works together with the natural granite paving to form a clear and ordered ground system.
For cultural centers, museums, art galleries, and large public buildings, custom granite slabs offer more than the architectural character of large-format natural stone. Through detailed paving layouts, cut-to-size fabrication, and careful coordination of drainage and service elements, functional requirements can be integrated more naturally into the paving design, creating a stronger connection between architectural intent, engineering performance, and on-site installation.
